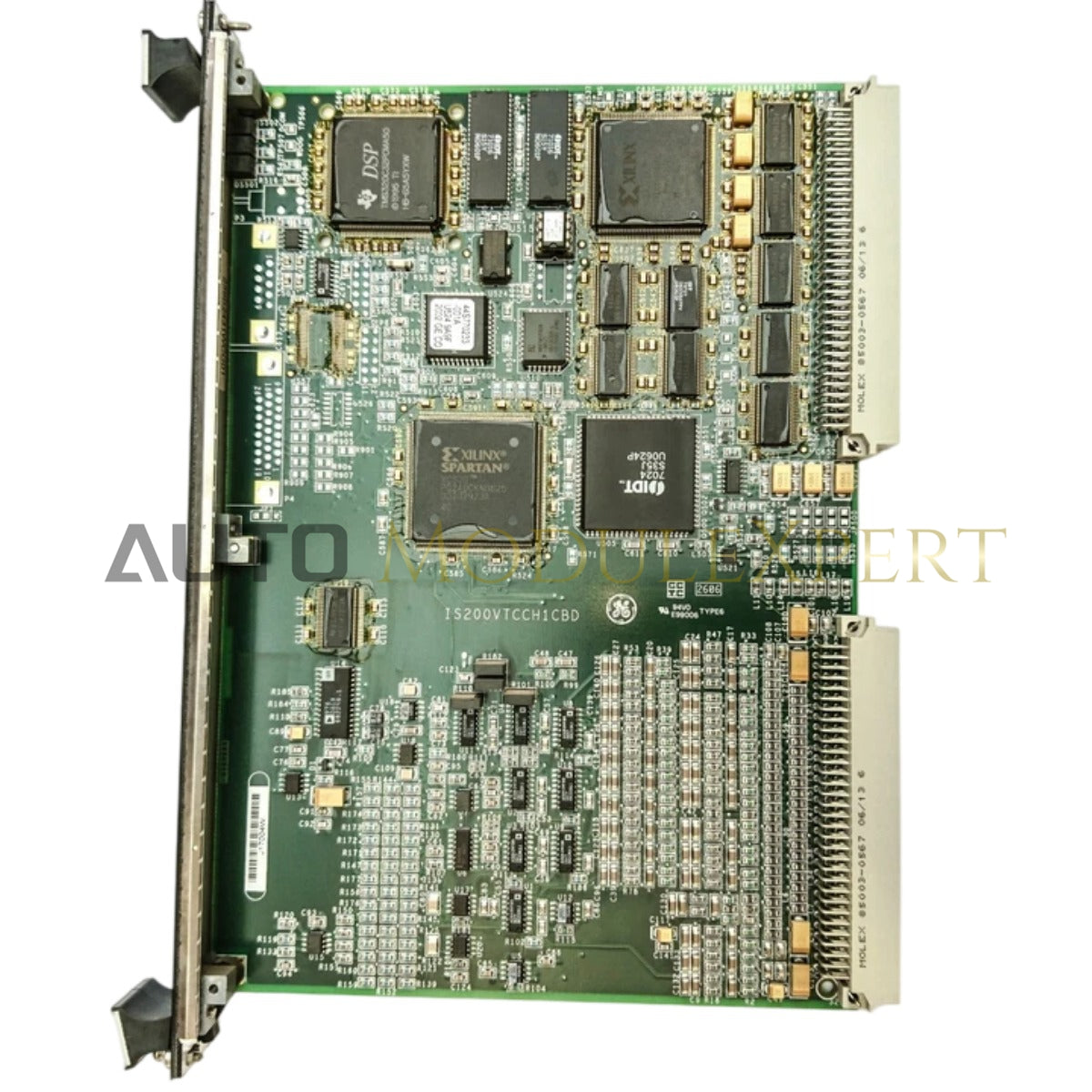

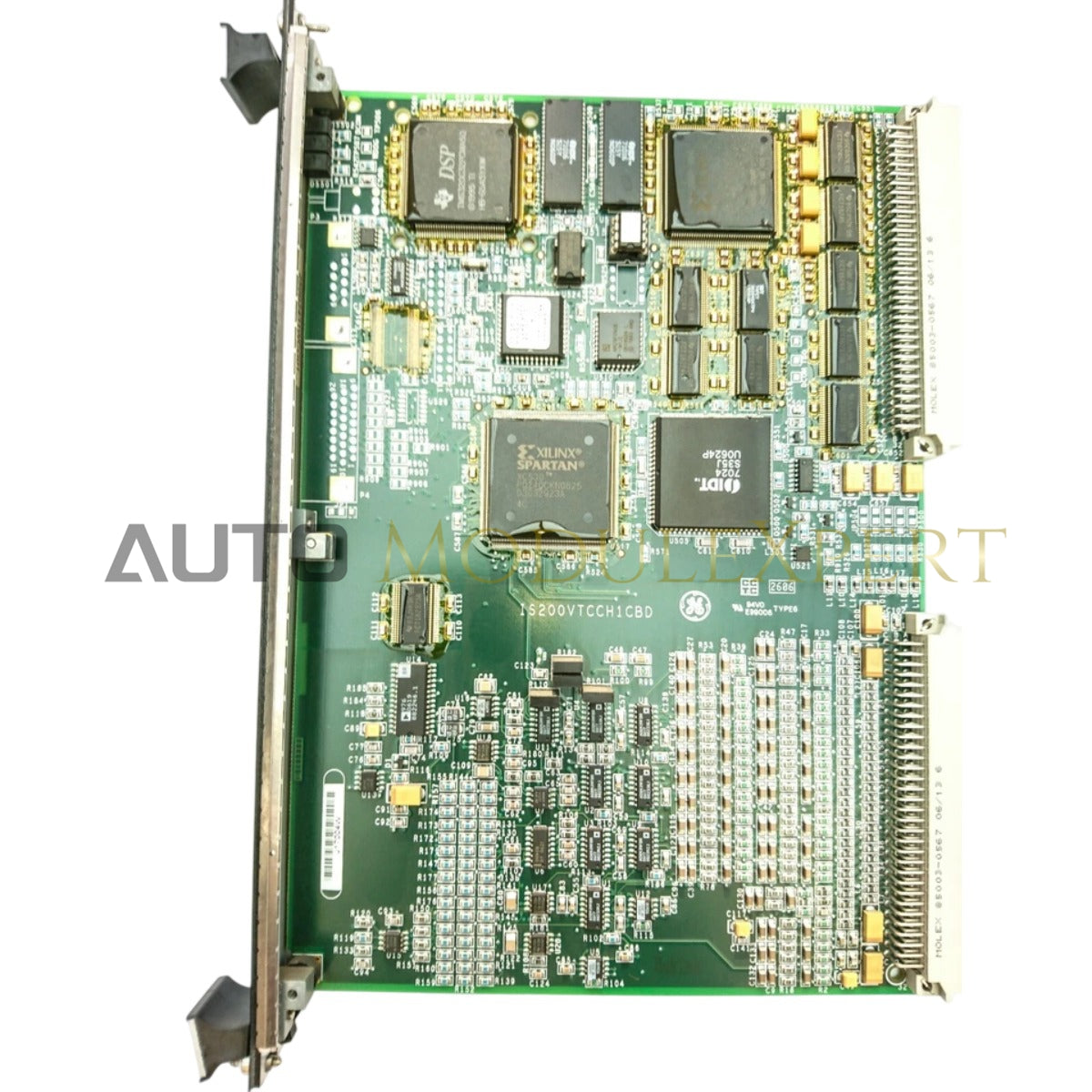

The GE IS200VTCCH1C, also cataloged as the IS200VTCC Thermocouple Card, operates as a dedicated hardware component for high-precision thermocouple signal conditioning and cold junction compensation (CJC) within Mark VI turbine control systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS200VTCCH1C |
| Brand | GE |
| Origin | USA |
| Weight | 0.85 kg |
| Dimensions | Standard Mark VI board form factor |
| Operating Temp | -20 deg C to 70 deg C |
| Power Consumption | 24 VDC nominal |
| Input Types | Thermocouples (J, K, T, E, etc.) |
Firmware and Backplane Communication
The IS200VTCCH1C facilitates deterministic data acquisition by interfacing directly with the Mark VI I/O processor via the backplane bus. The module manages backplane bus communication velocity to ensure high-fidelity thermocouple signal transmission, which is critical for real-time turbine exhaust temperature monitoring. Firmware flash compatibility is strictly governed by the I/O pack configuration, requiring the card to remain synchronized with the primary controller's diagnostic suite. I/O density scaling is supported through the board’s multi-channel architecture, allowing for efficient aggregation of thermal data from various turbine sections.
Frequently Asked Questions
Q: Does this card require manual calibration for different thermocouple types?
A: No, the card is software-configurable. The specific thermocouple type (J, K, T, E) is defined in the Mark VI controller configuration software, which applies the appropriate linearization and compensation curves to the raw input data.
Q: How is cold junction compensation handled by this module?
A: The board features integrated CJC sensors located at the termination points. These sensors provide an ambient temperature reference to the I/O pack, allowing the controller to calculate the compensated temperature value precisely.
Field Installation Guidelines
- Ensure the Mark VI cabinet is de-energized and zero-energy verified before installing the card.
- Use only the recommended thermocouple extension wire for field connections to prevent the introduction of unintended dissimilar metal junctions.
- Ensure the card is fully seated in the rack to guarantee proper backplane contact and minimize impedance in the low-level signal paths.
- Ground the module to the cabinet chassis through the provided mounting points to ensure effective electromagnetic interference shielding.
- Verify thermocouple loop integrity by checking for open circuits or short-to-ground conditions using a digital multimeter before initializing the control loop in the software.
| Quick Quotes | Receive price & availability FAST from our dedicated customer service team. |
|---|---|
| Delivery | Expedited, Freight, And International Shipping Available. |
| Condition | 100% New with Original Package |
| Payment | We accept American Express, Discover, MasterCard, PayPal, and Visa. Our site is secured by RapidSSL. |
| Shipping Port | ShangHai, Xiamen |
| Warranty | 12 Months |
| Q: Is Our Pricing Competitive? |
| A: Yes, we collaborate with over 50 countries worldwide. As a top supplier in China, we offer significant discounts based on market trends. |
| Q: What Is the Warranty Period? |
| A: All our new and original products come with a standard one-year warranty. |
| Q: What Payment Methods Do We Accept? |
| A: We require 100% T/T (Telegraphic Transfer) payment before shipping. For items with a lead time, a 30% deposit is needed upfront, and the remaining 70% is due before shipping. If you have a representative in China, you can arrange an RMB transfer through them. |
| Q: What Shipping Methods Do We Use? |
| A: We primarily use FedEx, DHL, UPS, and BRE for shipping. If you have an account with any of these carriers, you can handle shipping directly. We also offer free shipping to China-based freight forwarders. |
| Q: What Is Our Delivery Time? |
| A: Delivery usually takes 1-3 days after receiving the initial payment. For items with a lead time, shipping will occur according to the specified schedule. |
| Q: How Do We Package the Goods? |
| A: We ensure safe packaging with multiple layers of protection. Products are first placed in their original boxes and sealed with labels. A layer of bubble wrap is then added for collision protection during transit. Finally, the items are packed securely in durable boxes. |
| Q: How Can Customers Contact Us and Request a Quote? |
| A: You can reach out to us via email, WhatsApp, WeChat, Skype, or your preferred communication platform. Contact us with your needs, and we'll provide a prompt, customized quote. |
