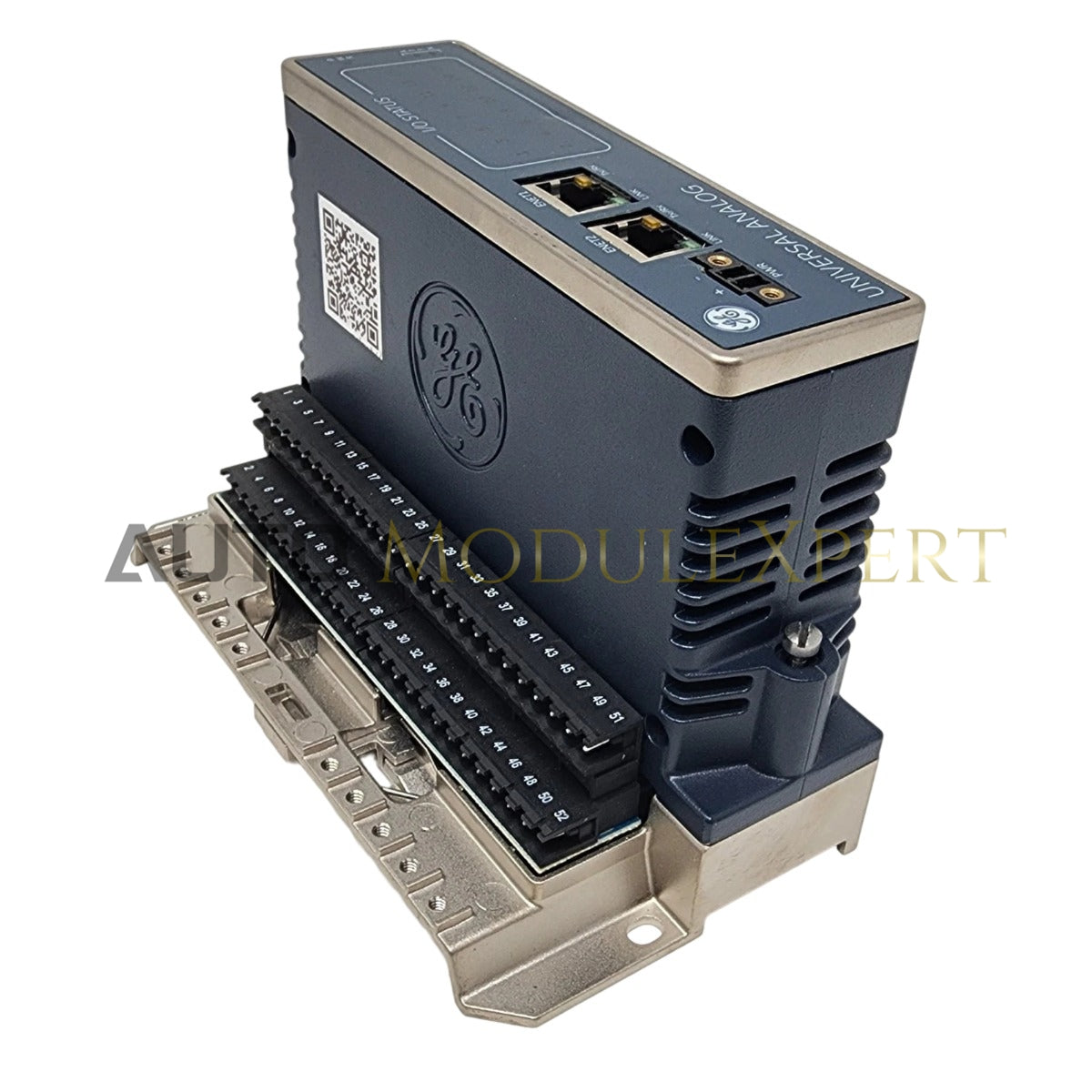

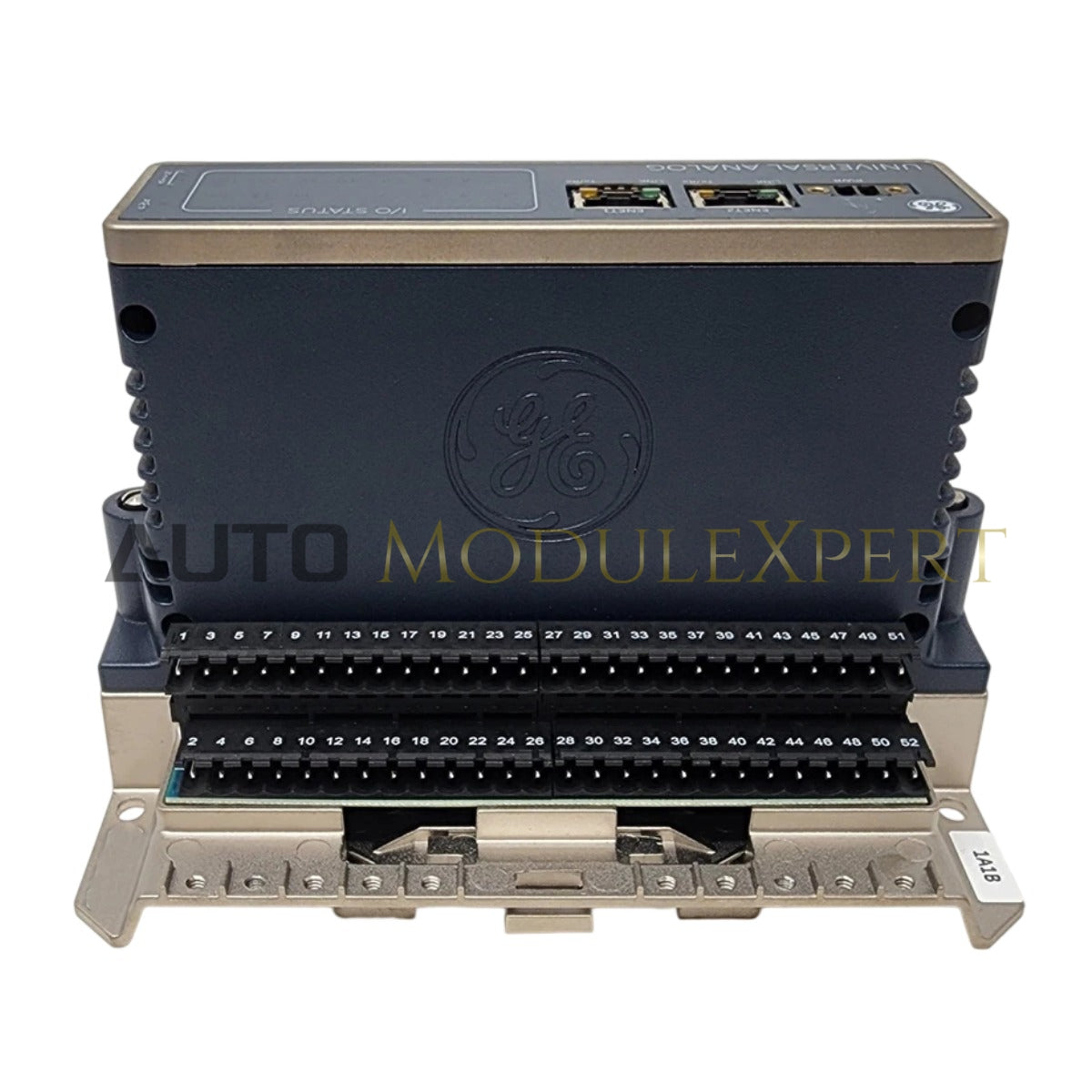

The General Electric IS430SNUAH1A, also cataloged as the IS430SNUAH1 Universal Analogue Input/Output Module, operates as a dedicated hardware component for multi-range signal conversion and field-level process variable monitoring within Mark VIe control platforms.

Suffix Breakdown & Model Matrix

The IS430SNUAH1A follows the GE standardized hardware nomenclature. The "IS430" prefix identifies the component as a member of the universal I/O family. The "SNUA" designator defines the module as a configurable analog signal processor. The "H1" identifies the primary hardware generation, while the "/A" suffix indicates the initial revision level, which governs compatibility with specific terminal board wiring configurations and I/O scan-rate firmware.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks

The IS430SNUAH1A is engineered for seamless integration into high-speed deterministic networks, facilitating the bidirectional conversion of process signals. It provides channel-to-channel isolation to prevent ground-loop interference when monitoring disparate sensors. The module utilizes backplane bus communication to ensure that analog-to-digital conversion timing is synchronized with the primary control processor's scan cycle. Firmware flash compatibility allows for localized updates to support varying signal ranges, ensuring that data throughput remains consistent with network jitter requirements.

Frequently Asked Questions

Q: Can the IS430SNUAH1A be configured for both voltage and current inputs?

A: Yes. The module is designed to handle multiple input/output ranges. Configuration is performed through the controller software, which sets the internal shunt or high-impedance parameters for each specific channel.

Q: Is this module hot-swappable while the I/O rack is under power?

A: Yes. The IS430SNUAH1A supports hot-swapping in a Mark VIe system, provided the associated terminal board remains securely wired and the controller is configured to manage the temporary signal loss during module extraction.

Field Installation Guidelines

• Chassis Mounting: Insert the module into the designated I/O rack slot. Ensure that the module is fully seated against the backplane connector to maintain signal continuity.
• Shielding: All analog signal cabling must utilize shielded twisted-pair conductors. Terminate the shield at the cabinet's designated earth ground bar, ensuring the shield is not connected to the module signal common to prevent noise ingress.
• Wiring Separation: Maintain physical distance between analog signal wiring and high-voltage power lines. Crossing paths should be minimized and maintained at a 90-degree angle to reduce inductive coupling.
• Calibration: Post-installation, verify the accuracy of the analog signal conversion through the workstation interface to ensure the software-defined range matches the field device output.
