Product Description

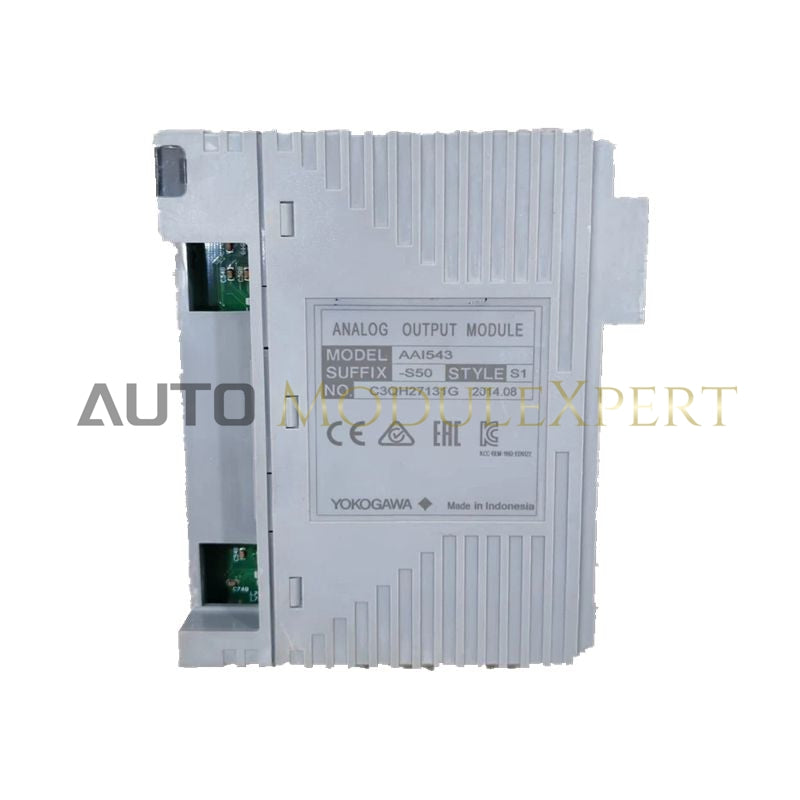

The AAI543-S50/A4S10 is a high-density analog output module for the Yokogawa CENTUM VP and FIO systems. Unlike analog input modules, the AAI543 series is purpose-built to deliver 16 fully isolated 4–20 mA output channels for driving field actuators such as control valves, I/P converters, and variable frequency drives.
The module supports dual-redundant configurations, ensuring uninterrupted control during hardware failures. The S50 specification denotes the standard basic type for non-hazardous areas, while the /A4S10 suffix identifies the terminal block interface used for efficient and reliable field wiring.
Technical Specifications
| Parameter | Specification |
|---|---|
| Output Channels | 16 channels, fully isolated |
| Output Signal Range | 4–20 mA DC |
| Output Accuracy | ±48 μA |
| Data Update Period | 10 ms |
| Temperature Drift | ±16 μA per 10 °C |
| Redundancy | Dual-redundant switch-over supported (standard response) |
| Isolation Rating | 1500 V AC (output to system), 1 minute |
| Allowable Load Resistance | 0–750 Ω |
| Power Consumption | Max. 450 mA @ 5 V DC; 450 mA @ 24 V DC |
| Operating Temperature | −20 to +70 °C |
| Weight | 0.33 kg |
Application Scenarios
The AAI543-S50/A4S10 is widely used in large-scale process plants for control valve positioning, motor speed control, and other continuous output applications. Its high channel density, full isolation, and redundancy capability make it ideal for control cabinets where space efficiency and high availability are mandatory.
Technical FAQ
Q: Can this module be used in a redundant configuration?
A: Yes. The S50 specification supports standard switch-over redundancy, allowing two AAI543-S50/A4S10 modules to be installed as a redundant pair.
Q: What is the maximum load resistance per channel?
A: Each output channel can drive loads up to 750 Ω, suitable for most industrial actuators and valve positioners.
Q: Is this module suitable for hazardous areas?
A: No. As a Type 5 (non-explosion protected) module, it is intended for safe areas or installation within certified protective enclosures.
