Product Description

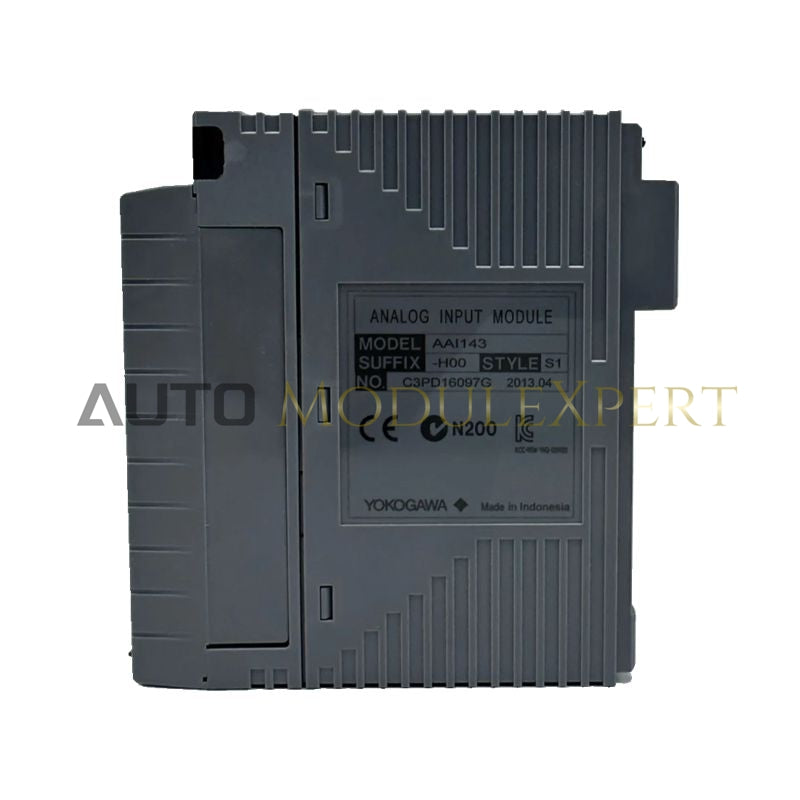

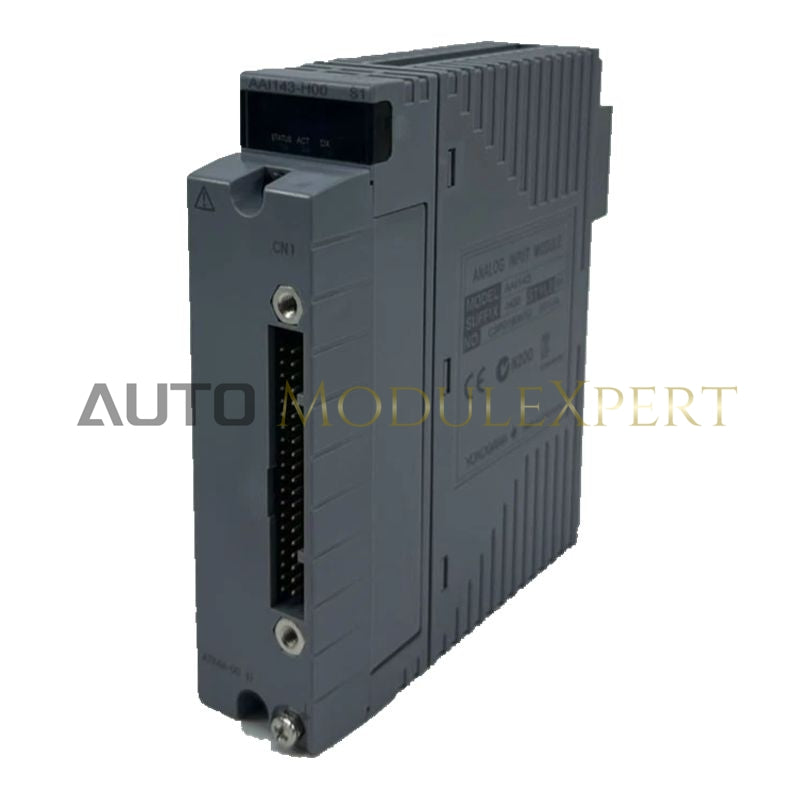

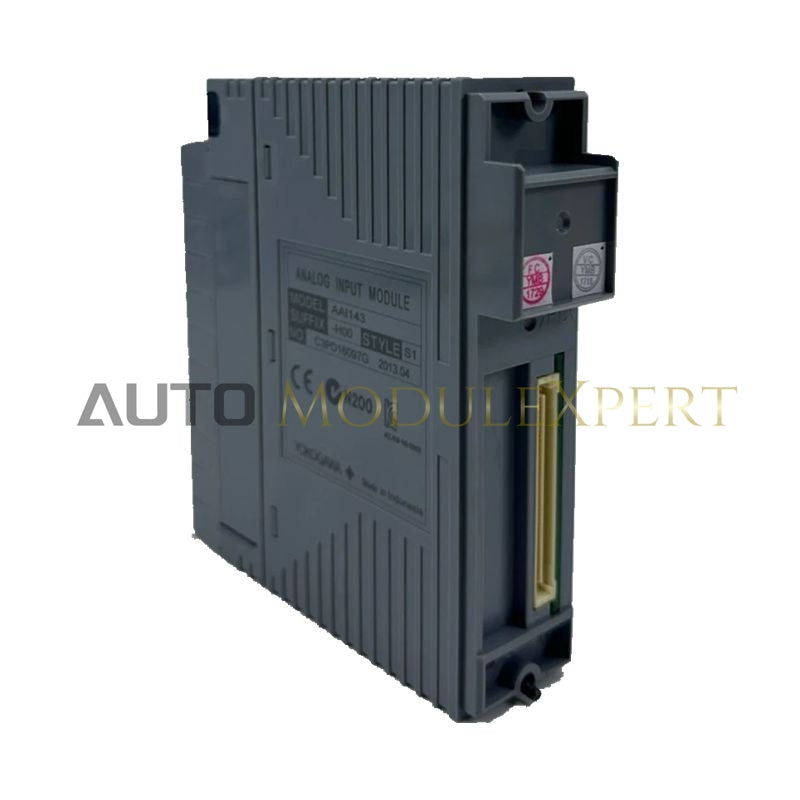

The AAI143 (P/N: AAI143-H00 S2) is a high-density, fully isolated analog input module for the Yokogawa CENTUM VP distributed control system. It provides 16 independent current input channels (4–20 mA), ensuring complete galvanic isolation between channels and the system logic to prevent ground loop interference in complex process environments.
As an H-suffix module, it features HART digital communication, allowing remote asset management and diagnostics from smart field transmitters. The S2 hardware revision improves component longevity and stability over earlier generations. Manufactured in Japan, this module is built for mission-critical sensing in industrial applications requiring both high precision and robust electrical isolation.
Technical Specifications
| Item | Specification |
|---|---|
| Input Channels | 16 × analog current input |
| Isolation Architecture | Fully isolated (channel-to-channel and channel-to-system) |
| Signal Range | 4 to 20 mA DC |
| Digital Communication | HART protocol for digital data over analog loops |
| Withstanding Voltage | 500 V AC for 1 minute (signal to system) |
| Input Resistance (Active) | 270 Ω @ 20 mA → 350 Ω @ 4 mA |
| Input Resistance (Passive) | ≥ 500 kΩ (power off) |
| Measurement Precision | ±16 µA |
| Revision Level | S2 (second-generation hardware) |
| Physical Dimensions | 5 × 13 × 15 cm |
| Net Weight | 0.6 kg |
Application Use Cases
The AAI143-H00 S2 is ideal for high-density process monitoring in:
-
Oil & gas production
-
Chemical processing plants
-
Pharmaceutical manufacturing
Its isolated 16-channel design ensures signal integrity for flow, level, and pressure transmitters, while HART diagnostics enable predictive maintenance and remote troubleshooting of smart field instruments.
FAQ
What is the significance of the "S2" style code?
The S2 revision represents an updated hardware design, including improved thermal management and long-term reliability, while maintaining the same functional capabilities as the S1.
Does this module require a separate HART multiplexer?
No. Each channel has an onboard HART modem, allowing direct communication between the DCS and smart field devices without additional hardware.
