Overview

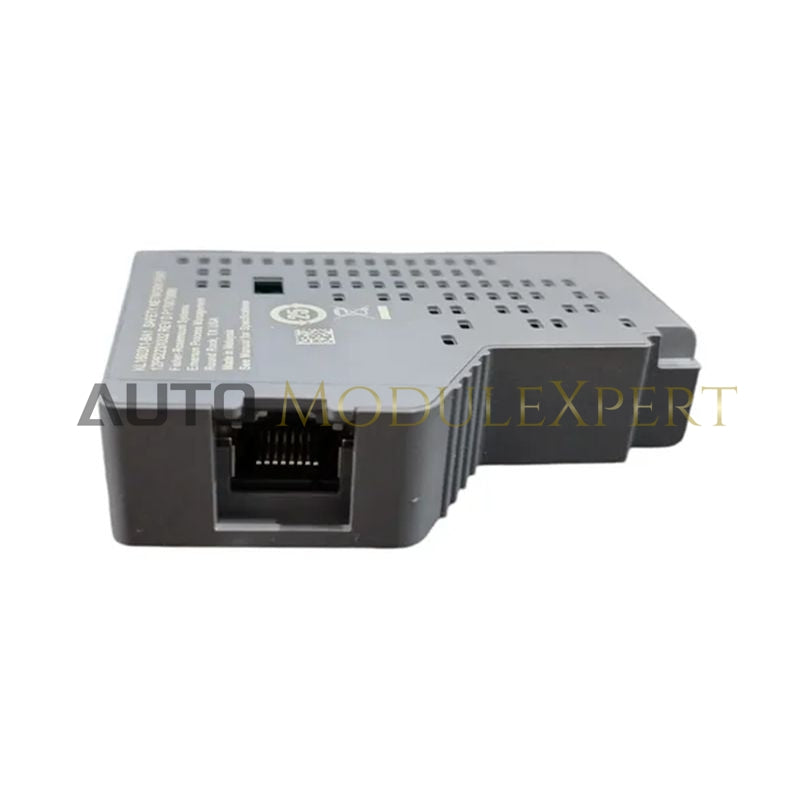

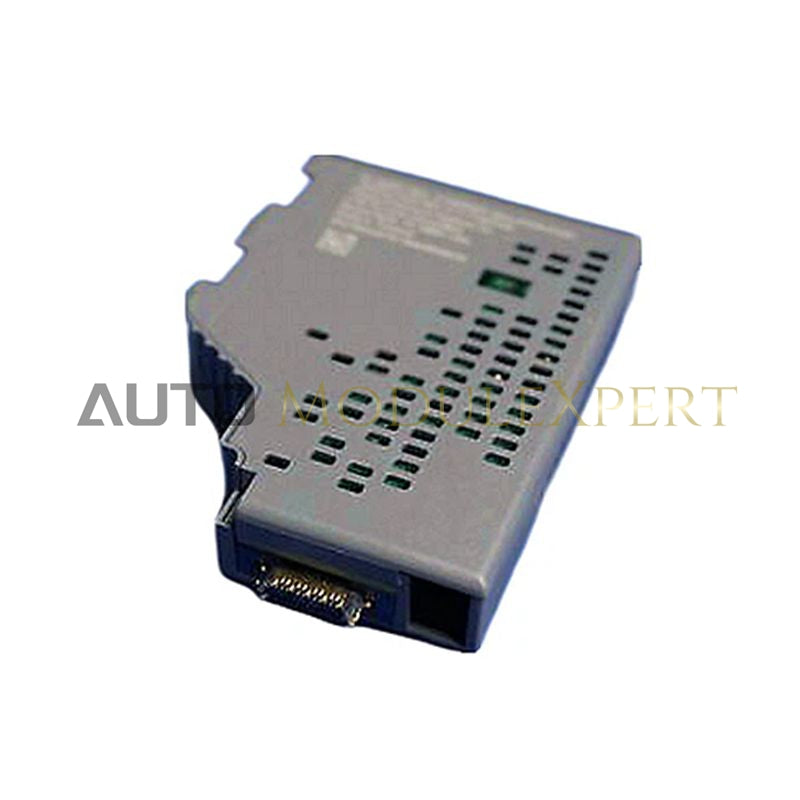

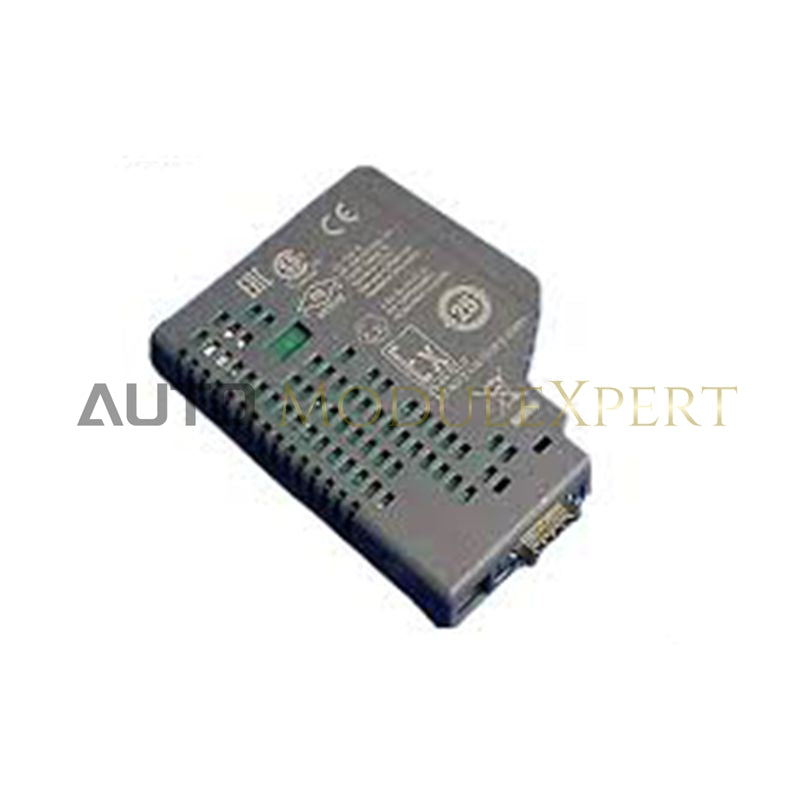

The KL1602X1‑BA1 Fiber I/O Port is part of Emerson’s DeltaV S‑Series Electronic Marshalling system. It provides a fiber optic interface for connecting DeltaV CHARMs (CHARacterization Modules) to the system, enabling reliable communication and signal distribution across extended distances.
This module is specifically designed for hazardous area installations (Zone 2 / Class I Div. 2) and complies with ATEX, IECEx, FM, and UKEX certifications, ensuring robust performance in oil & gas, chemical, and power generation environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | KL1602X1‑BA1 |
| Product Type | Fiber I/O Port Module |
| Ambient Temperature | –40°C to +60°C |
Typical Applications
-
Electronic Marshalling (CHARM I/O Subsystem): Provides fiber optic connectivity for distributed CHARMs.
-
Hazardous Area Installations: Certified for Zone 2 / Class I Div. 2 environments.
-
Process Automation: Used in chemical, petrochemical, and refining plants.
-
Oil & Gas: Provides reliable fiber communication in drilling rigs and refineries.
-
Power Generation: Interfaces with distributed I/O in turbine and boiler systems.
Example:
In a petrochemical plant, the KL1602X1‑BA1 enables fiber optic communication between CHARMs and controllers, ensuring reliable signal transmission across long distances in hazardous zones.
FAQ
Q1: What is the primary function of the KL1602X1‑BA1?
A1: It provides fiber optic connectivity for DeltaV CHARMs in the Electronic Marshalling subsystem.
Q2: Is it suitable for hazardous environments?
A2: Yes, it is certified for ATEX, IECEx, FM, UL, and UKEX hazardous locations.
Q3: What are its environmental ratings?
A3: Operates from –40°C to +60°C, with vibration and shock resistance per industrial standards.
Q4: What power does it require?
A4: 3.4 VDC at 800 mA.
Q5: What industries use this module?
A5: Oil & gas, chemical, petrochemical, power generation, and utilities.
