Technical Description

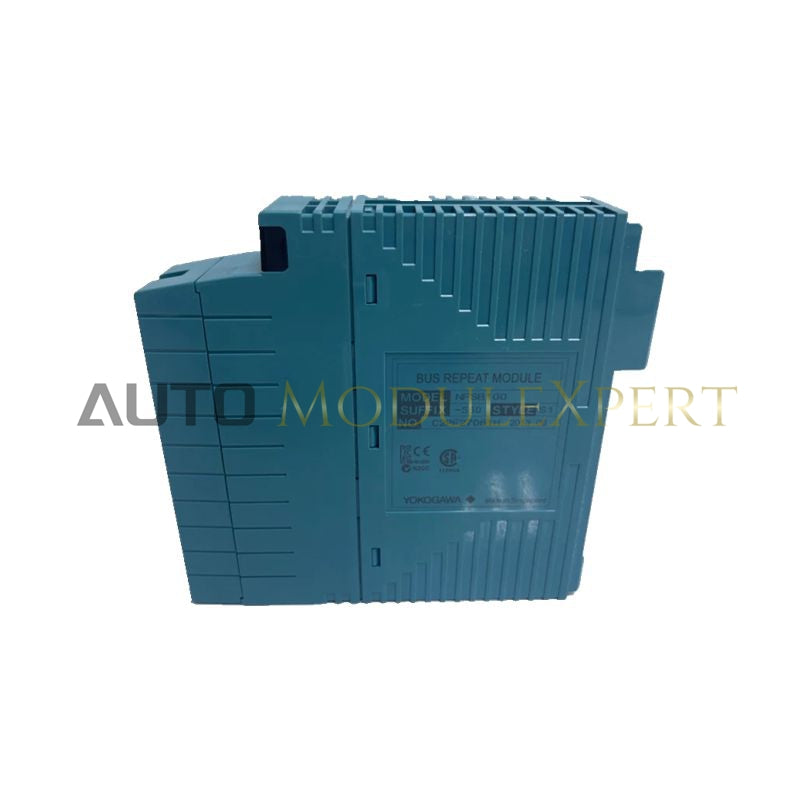

The NFSB100-S50/SBT01 is a System Backboard (SB) Bus Repeater Master Module for Yokogawa CENTUM VP and CS 3000 distributed control systems. It functions as the primary gateway to extend internal SB bus communication between physically separated cabinet nodes. By regenerating SB bus signals, this module overcomes distance limitations and ensures reliable, deterministic data transfer across extended backplane wiring. The S50 suffix indicates a hardened industrial build, while SBT01 specifies the included terminal interface unit for signal termination.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Designation | NFSB100-S50/SBT01 |
| Function | SB Bus Repeater (Master Side) |
| Compatibility | CENTUM VP, CS 3000 Series node backplanes |
| Signal Extension | Regenerates SB bus timing and data signals |
| Hardware Class | S50 (standard hardened build) |
| Terminal Interface | SBT01 (included terminal interface unit) |
| Isolation | High-integrity electrical isolation to prevent ground loops |
| Power Consumption | Low internal bus load |
| Mounting Profile | FIO node interface slots |
| Environmental Rating | Standard CENTUM control room/cabinet conditions |
Operational Application
The NFSB100-S50/SBT01 is used when I/O capacity exceeds a single cabinet or when remote marshalling nodes are deployed. It maintains logical continuity between distributed CPUs and remote I/O modules by managing bus timing and signal integrity, preventing latency, reflections, or data corruption in extended system backplanes. This makes it essential in large-scale process plants requiring deterministic control across multiple enclosures.
Frequently Asked Questions
Why is a repeater master module necessary for my CENTUM system?
When the I/O layout exceeds standard backplane distances, signal attenuation and reflections can compromise communication. The repeater master restores signal integrity, ensuring reliable data exchange with remote I/O nodes.
Can I use the NFSB100-S50/SBT01 in a redundant bus setup?
Yes. It supports fault-tolerant bus architectures, typically paired with a corresponding slave repeater module in redundant configurations.
Is the SBT01 terminal unit replaceable?
The SBT01 is critical for maintaining SB bus signal integrity. If damage occurs, the module should be reviewed, and replacement is generally performed at the factory or as part of the full assembly.
