Overview

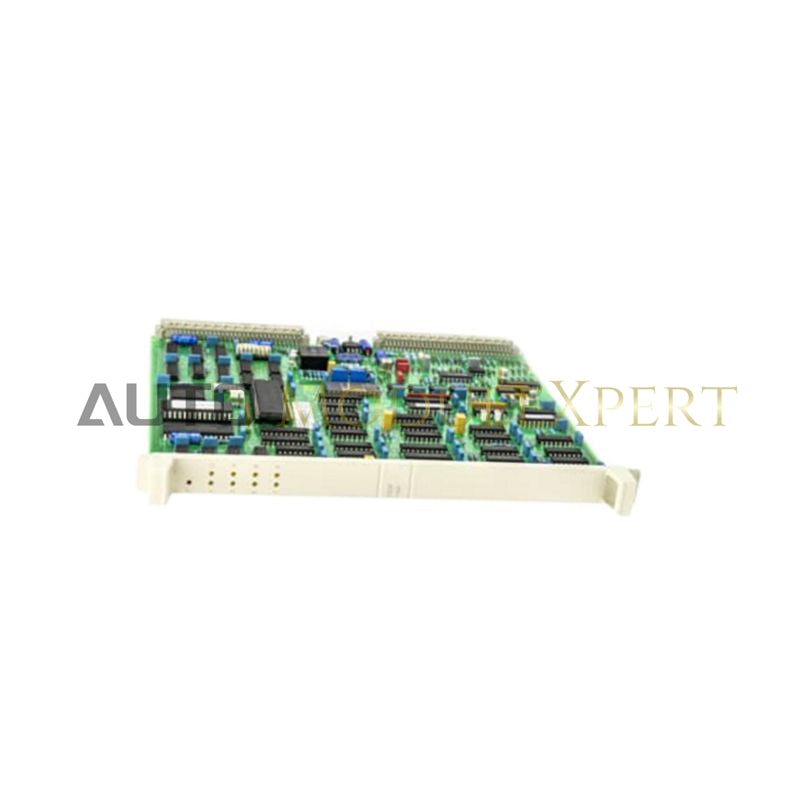

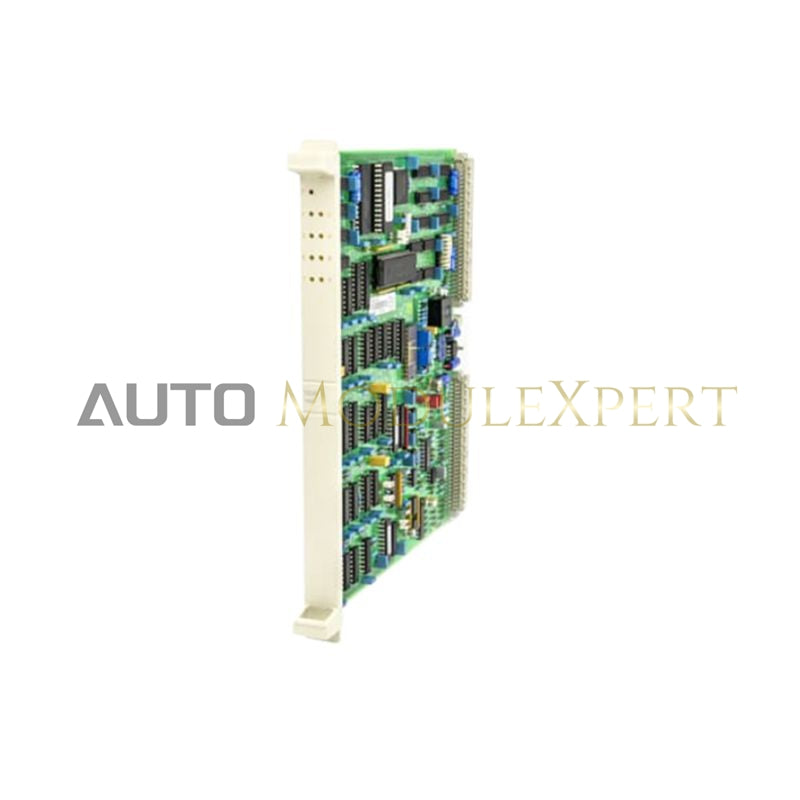

The ABB DSDP140A is a multifunctional pulse counter board designed for ABB’s Advant Master Process Control Systems. It combines pulse input, digital I/O, and analog output capabilities, making it ideal for high-speed control applications such as positioning loops, rotary encoders, and event counting.
The module features a three-channel pulse input loop capable of handling ±15 mA at up to 80 kHz, ensuring precise signal acquisition from pulse generators. Additionally, it includes 2 digital inputs, 4 digital outputs, and 1 analog output with 11-bit resolution plus sign, supporting 0 to +10 V or ±20 mA ranges. Its compact, robust design is suitable for demanding industrial environments.
For example, in a packaging line, the DSDP140A can count encoder pulses to track conveyor movement and trigger actuators based on position thresholds.
Technical Data
| Parameter | Specification |
|---|---|
| Model | DSDP140A |
| Product Type | Pulse Counter Board |
| Operating Temperature | –25°C to +55°C |
Typical Applications
-
Rotary Encoder Feedback: Counts high-speed pulses for position tracking and motion control.
-
Packaging and Assembly Lines: Triggers actuators based on pulse thresholds and digital logic.
-
Power Plant Automation: Monitors turbine shaft rotation and synchronizes control actions.
-
Industrial Process Control: Combines pulse counting with analog output for closed-loop regulation.
-
Retrofit Projects: Replaces legacy counter boards with modern, high-resolution modules.
FAQ
Q1: Is the DSDP140A original and in stock?
A1: Yes, it is brand new and original, with inventory available.
Q2: What is the maximum pulse frequency supported?
A2: Up to 80 kHz on the pulse input loop.
Q3: What analog output ranges are available?
A3: 0 to +10 V or ±20 mA, with 11-bit resolution plus sign.
Q4: How many digital I/O channels are included?
A4: 2 digital inputs and 4 digital outputs at 24V DC.
Q5: What systems is it compatible with?
A5: ABB Advant Master and S100 I/O platforms.
Q6: How fast can you ship this module?
A6: Typically within 3 days to 2 weeks depending on order size and logistics.
Q7: What if there’s a quality issue?
A7: Returns are supported within 30 days for verified quality problems.
