Product Overview

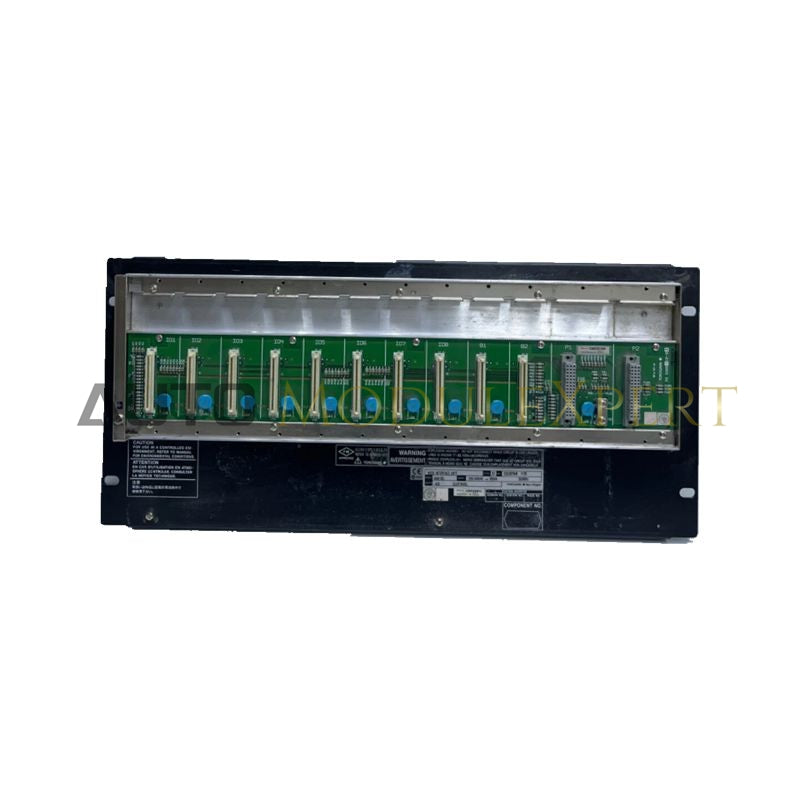

The AFV10D-S41151 is a high-availability processing node designed for the Yokogawa CENTUM VP control system. As a Duplexed Field Control Unit (FCU), it ensures continuous process operation by utilizing dual-redundant processor modules (CP451), operating in synchronized redundancy. This unit is responsible for executing real-time control logic and serves as the primary interface between the Vnet/IP plant network and field I/O modules. Its rugged construction and efficient thermal management make it well-suited for 24/7 mission-critical operations in demanding industrial environments.

Technical Specifications

Functional Comparison: AFV10D vs. AFV30D

While both the AFV10D-S41151 and AFV30D serve as central processing units within the CENTUM VP system, the key difference lies in their network throughput and scalability:

• AFV10D-S41151: Optimized for environments with 100 Mbps Vnet/IP throughput, making it suitable for mid-tier processing and legacy FIO bus compatibility.

• AFV30D: Scales up to 1 Gbps, offering higher performance and greater capacity for more demanding, high-throughput applications.

The AFV10D is often the preferred choice for existing installations where stability and legacy compatibility are the primary concerns.

Deployment FAQ

How is the "Duplexed" status monitored by the system?
The AFV10D-S41151 uses a dedicated high-speed synchronization bus between the two processor modules. If the active module detects a failure (such as internal diagnostics or power loss), control is automatically transferred to the standby module within one control cycle, ensuring no deviation in field outputs.

What cabling is required for the Vnet/IP connection?
The unit requires Standard UTP Category 5e (or higher) cables to connect to Vnet/IP Layer 2 managed switches. Redundancy is achieved through two independent network segments (Bus 1 and Bus 2), ensuring uninterrupted communication.
