Product Overview

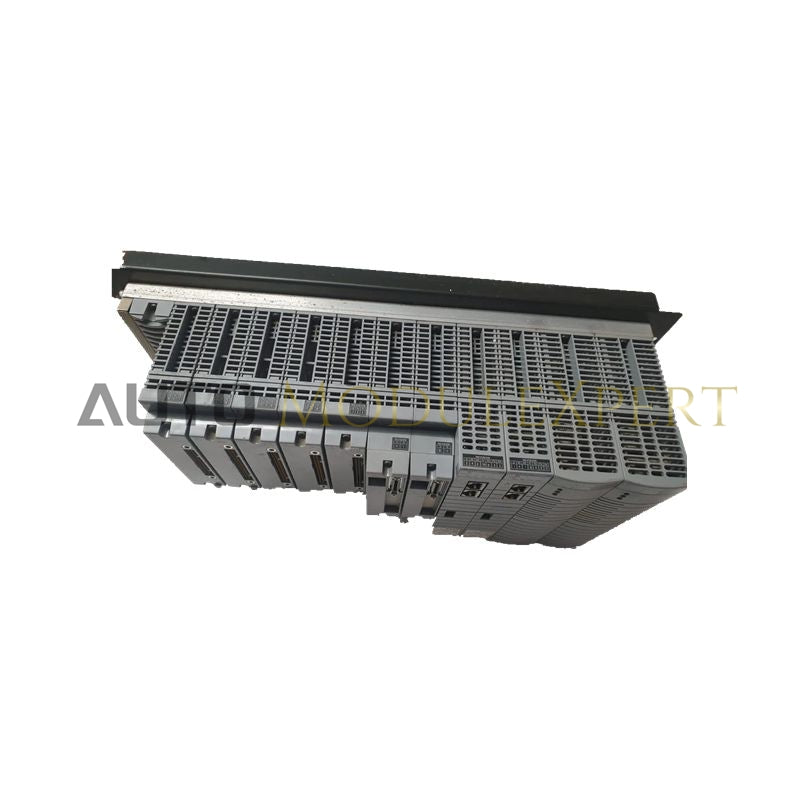

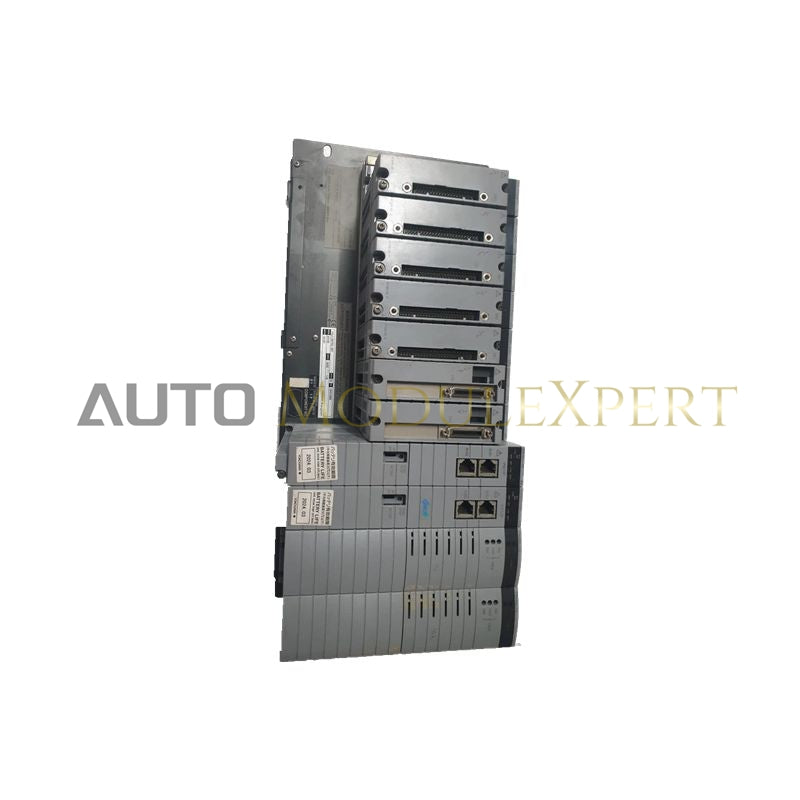

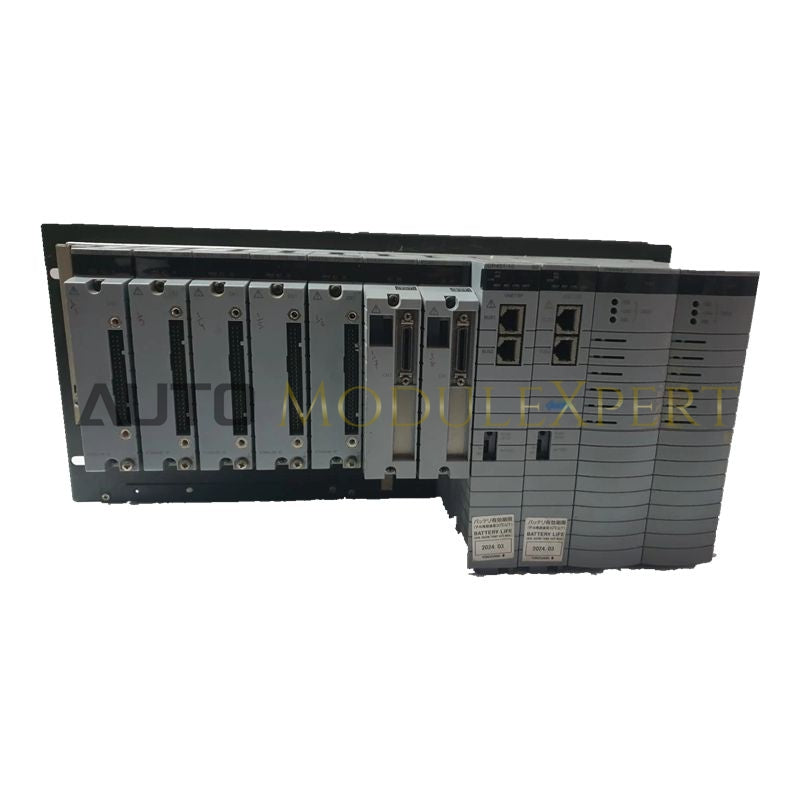

The AFV10D-S41451 is a high-availability Field Control Unit (FCU) for the Yokogawa CENTUM VP control system, engineered to deliver real-time process automation with dual-redundant hardware. This duplexed configuration ensures uninterrupted control logic execution, even in the event of a failure. The AFV10D-S41451 serves as a high-performance bridge between the Vnet/IP plant network and modular FIO subsystems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Redundancy Architecture | Dual CP451 processors, hot-standby synchronization |
| System Integration | Optimized for Vnet/IP and FIO-based signal conditioning |
| Network Interface | Dual-redundant 100Base-TX Ethernet ports (UTP CAT5e or better) |
| I/O Capacity | Manages up to 13 node units (local or remote) |
| Power Modules | Redundant PW481 (100-120V AC), PW482 (220-240V AC), or PW484 (24V DC) |
| Memory Protection | Battery backup for up to 72 hours RAM retention; 48-hour recharge |
| Physical Footprint | 19-inch rack-mount, 5U height |
| Dimensions (H×W×D) | 221 mm (H) × 482.6 mm (W) × 440 mm (D) |
| Weight | 8.0 kg |
| Environmental Tolerance | -10°C to +55°C |
Implementation and Application
The AFV10D-S41451 is designed for medium-to-large scale industrial facilities, including petrochemical refineries, water treatment plants, and pharmaceutical manufacturing. Its high-reliability architecture makes it suitable for processes where downtime or control loss could result in significant safety risks or financial loss.
Redundancy & Reliability FAQ
How does the "Bumpless Transfer" function work?
The AFV10D-S41451 maintains constant communication between the two processor modules. If a fault is detected in the active module, the standby module assumes control of the I/O bus and Vnet/IP traffic in milliseconds, ensuring no disruption to the physical process.
Is this unit compatible with older Vnet systems?
While natively designed for Vnet/IP, integration with older Vnet systems (non-IP) typically requires a dedicated bus converter or gateway node.
