Product Description

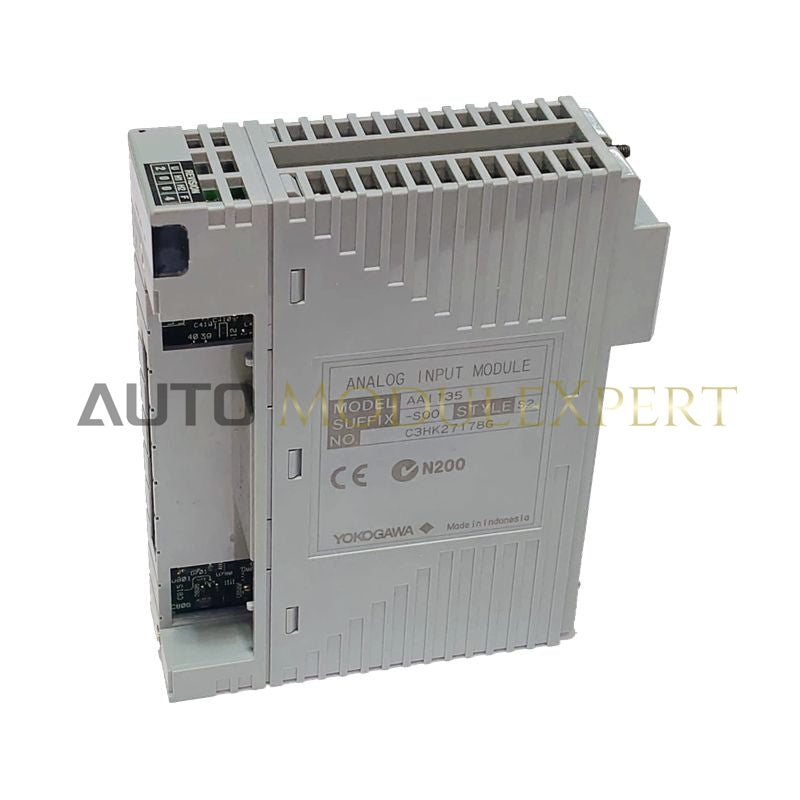

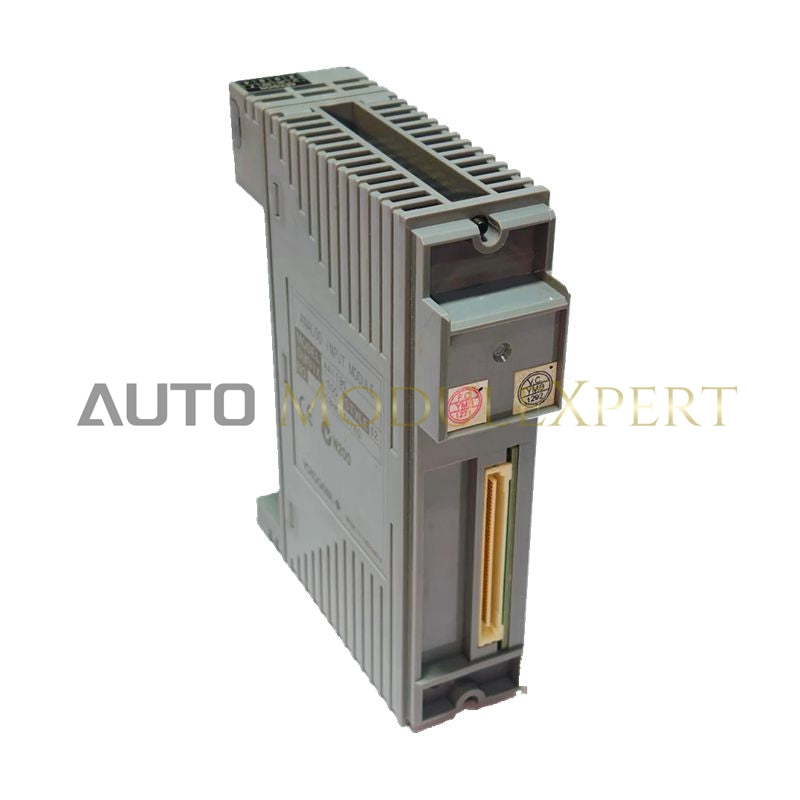

The AAI135 S3 is a high-precision 8-channel analog input module designed for Yokogawa Centum VP and CS 3000 Distributed Control Systems (DCS). It is optimized for capturing 4 to 20 mA signals from field transmitters while maintaining full channel isolation to protect against common-mode noise and ensure maximum signal integrity.
The S3 Style Code denotes a hardware revision with updated internal components, improved thermal performance, and enhanced reliability, while remaining backward compatible with earlier AAI135 modules. Its compact FIO form factor enables high-density installation in control cabinets, making it ideal for space-constrained applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Channels | 8 channels, fully isolated |
| Signal Type | 4–20 mA DC |
| Hardware Revision | Style S3 |
| Data Update Period | 10 ms |
| Measurement Accuracy | ±0.1% of span |
| Input Resistance | 250 Ω |
| Withstanding Voltage | 1500 V AC between input and system logic |
| Power Consumption | 230 mA at 5 V DC; 540 mA at 24 V DC |
| Dimensions | 2.2 cm × 12.4 cm × 12.6 cm |
| Weight | 0.4 kg |
Module Benefits and Style S3 Features
-
Provides robust interface for critical monitoring loops.
-
Backward compatible with older AAI135 modules.
-
Refined manufacturing improves MTBF (Mean Time Between Failures).
-
Ideal for power generation, oil & gas, chemical, and pharmaceutical industries.
-
Compact FIO footprint enables efficient cabinet utilization.
Frequently Asked Questions
Q: Can the AAI135 S3 be used in a redundant configuration?
A: Yes. It supports dual-redundancy when installed on a compatible FIO baseplate, allowing hot-swappable maintenance without interrupting the process.
Q: Is this module compatible with HART-capable transmitters?
A: The module can process the 4–20 mA analog signal from a HART transmitter but does not support digital HART communication. For HART transparency, the AAI135-H variant should be used.
