Product Description

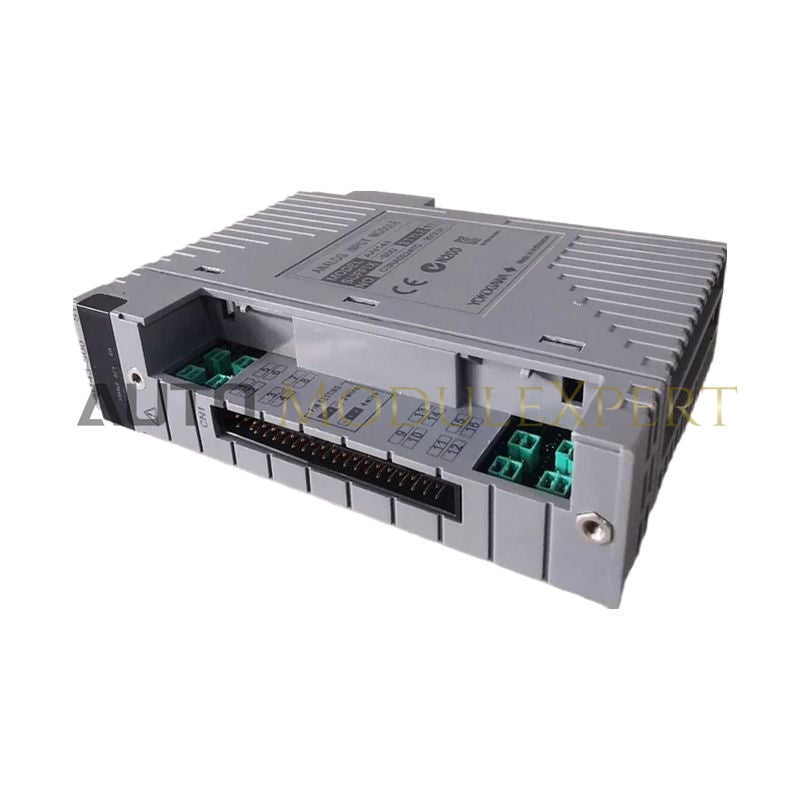

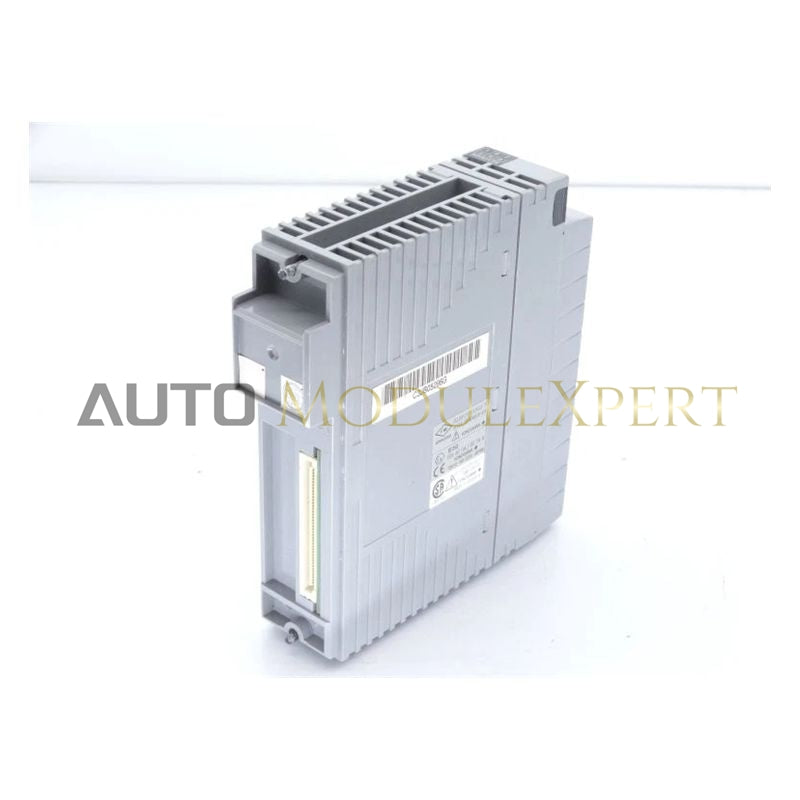

The AAI143-S53/K4A00 is a ruggedized, high-density 16-channel analog input module for Yokogawa Centum VP and CS 3000 Distributed Control Systems (DCS). This isolated module is designed to reliably acquire 4–20 mA signals from field transmitters under harsh industrial conditions.
The S53 hardware designation denotes a high-specification variant featuring ISA Standard G3 conformal coating, providing superior resistance to corrosive gases such as H₂S and SO₂, as well as humidity. Its wide operating temperature range (-20°C to +70°C) allows deployment in remote instrument enclosures (RIEs) or cabinets without active climate control.
The module includes the /K4A00 KS Cable Interface Adapter (ATK4A-00), enabling high-density connectivity to AEA4D terminal boards via KS1 cables. Combined with a 10 ms data update cycle and 1500 V AC galvanic isolation, the AAI143-S53/K4A00 ensures fast, accurate, and secure signal acquisition for critical process loops.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Channels | 16 channels, fully isolated |
| Input Signal Range | 4–20 mA DC |
| Environmental Protection | ISA G3 Conformal Coating (resistant to H₂S, SO₂, and humidity) |
| Operating Temperature | -20°C to +70°C |
| Interface Hardware | KS Cable Interface Adapter (K4A00) |
| Data Update Period | 10 ms |
| Measurement Accuracy | ±16 μA (±0.1% of span) |
| Transmitter Power Supply | ≥19.0 V at 20 mA |
| Input Resistance | 270 Ω (at 20 mA) – 350 Ω (at 4 mA) |
| Isolation Strength | 1500 V AC (input-to-system, 1 min) |
| Power Consumption | 230 mA at 5 V DC; 540 mA at 24 V DC |
| Transmitter Compatibility | Supports 2-wire and 4-wire configurations (per-channel pin settings) |
Key Advantages
-
Corrosion Resistance: G3 coating ensures durability in environments with corrosive gases, such as paper mills, refineries, and wastewater plants.
-
Extreme Climate Ready: Wide temperature rating allows installation in unconditioned remote instrument enclosures.
-
Simplified Wiring: KS Cable Interface enables multi-core connections to terminal boards, reducing cabinet labor and installation errors.
Frequently Asked Questions
Q: Does this module support HART digital communication?
A: No. The S53 variant is a standard analog input module. For HART diagnostics and configuration, use the AAI143-H series.
Q: Is this module hot-swappable?
A: Yes. When installed in a dual-redundant configuration on a compatible FIO baseplate, the module can be replaced while the system remains live.
Q: Can it power 2-wire transmitters?
A: Yes. Each channel can provide at least 19.0 V to power standard loop-powered transmitters.
| Quick Quotes | Receive price & availability FAST from our dedicated customer service team. |
|---|---|
| Delivery | Expedited, Freight, And International Shipping Available. |
| Condition | 100% New with Original Package |
| Payment | We accept American Express, Discover, MasterCard, PayPal, and Visa. Our site is secured by RapidSSL. |
| Shipping Port | ShangHai, Xiamen |
| Warranty | 12 Months |
| Q: Is Our Pricing Competitive? |
| A: Yes, we collaborate with over 50 countries worldwide. As a top supplier in China, we offer significant discounts based on market trends. |
| Q: What Is the Warranty Period? |
| A: All our new and original products come with a standard one-year warranty. |
| Q: What Payment Methods Do We Accept? |
| A: We require 100% T/T (Telegraphic Transfer) payment before shipping. For items with a lead time, a 30% deposit is needed upfront, and the remaining 70% is due before shipping. If you have a representative in China, you can arrange an RMB transfer through them. |
| Q: What Shipping Methods Do We Use? |
| A: We primarily use FedEx, DHL, UPS, and BRE for shipping. If you have an account with any of these carriers, you can handle shipping directly. We also offer free shipping to China-based freight forwarders. |
| Q: What Is Our Delivery Time? |
| A: Delivery usually takes 1-3 days after receiving the initial payment. For items with a lead time, shipping will occur according to the specified schedule. |
| Q: How Do We Package the Goods? |
| A: We ensure safe packaging with multiple layers of protection. Products are first placed in their original boxes and sealed with labels. A layer of bubble wrap is then added for collision protection during transit. Finally, the items are packed securely in durable boxes. |
| Q: How Can Customers Contact Us and Request a Quote? |
| A: You can reach out to us via email, WhatsApp, WeChat, Skype, or your preferred communication platform. Contact us with your needs, and we'll provide a prompt, customized quote. |
